Artemis

Artemis Missions

Overview

On November 16, 2022, at 1:47 AM EST, the Space Launch System rocket lit up the night sky over Kennedy Space Center. Riding atop this most powerful rocket ever built was Orionan uncrewed capsule bound for lunar orbit. Artemis I had begun. For 25.5 days, Orion flew farther from Earth than any spacecraft designed for humans had ever gone, testing heat shields, life support systems, and navigation in deep space. It splashed down in the Pacific Ocean on December 11, 2022, proving that the hardware worked. But hardware is only half the story. The Artemis program is not about sending machines to the Moonit's about sending people. And people are fragile.

Artemis II (planned for 2026) will be the first crewed lunar flyby since Apollo 17 in 1972. Artemis III (planned for 2027) will be a crewed low-Earth orbit test flight preparing systems for future lunar landings. Artemis IV and V will establish the Lunar Gateway space station and begin constructing an Artemis Base Camp on the surface, enabling sustained human presence beyond low-Earth orbit for the first time. These missions will test technologies, countermeasures, and medical protocols for eventual Mars missions2-3 year journeys where there is no quick abort, no resupply, and no evacuation option.

The question that keeps mission planners awake at night is not whether the rockets will work or the habitats will seal. It's whether the crew will remain healthyphysically and psychologicallyin an environment that evolution never prepared us for. Artemis astronauts will face radiation exposure far exceeding ISS levels, bone and muscle loss in 1/6th gravity, circadian disruption from extreme lunar day-night cycles, isolation in cramped habitats, and the constant risk of equipment failure with no immediate rescue. Every heartbeat, every milligram of cortisol, every hour of sleep, every rad of radiation dose must be tracked, correlated, and analyzed to ensure crew safety and mission success.

Artemis II Mission

FHIR Implementation Architecture

Mission Timeline

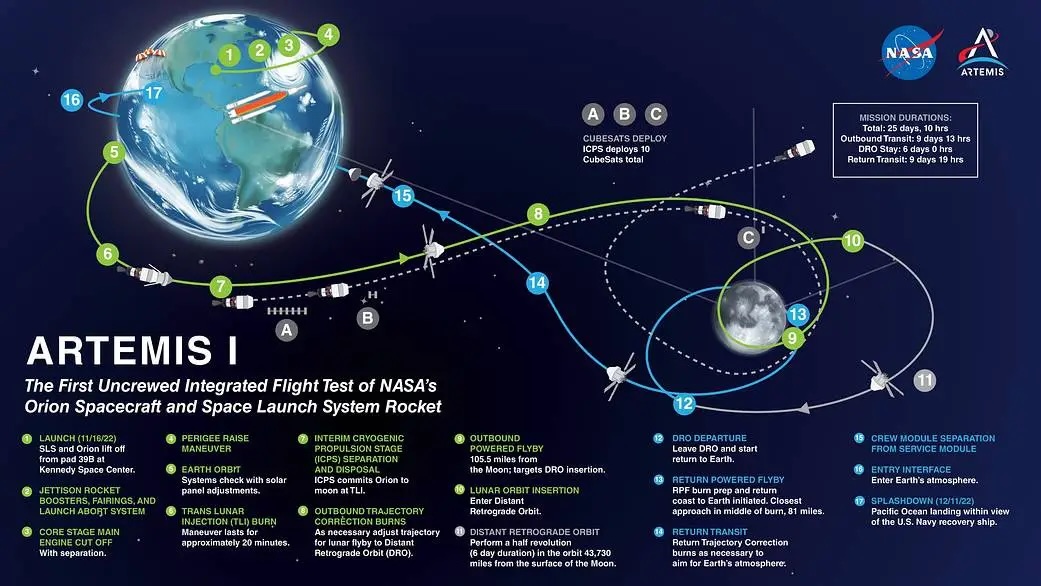

Artemis I - Uncrewed test flight, November 16 - December 11, 2022
Artemis I Mission

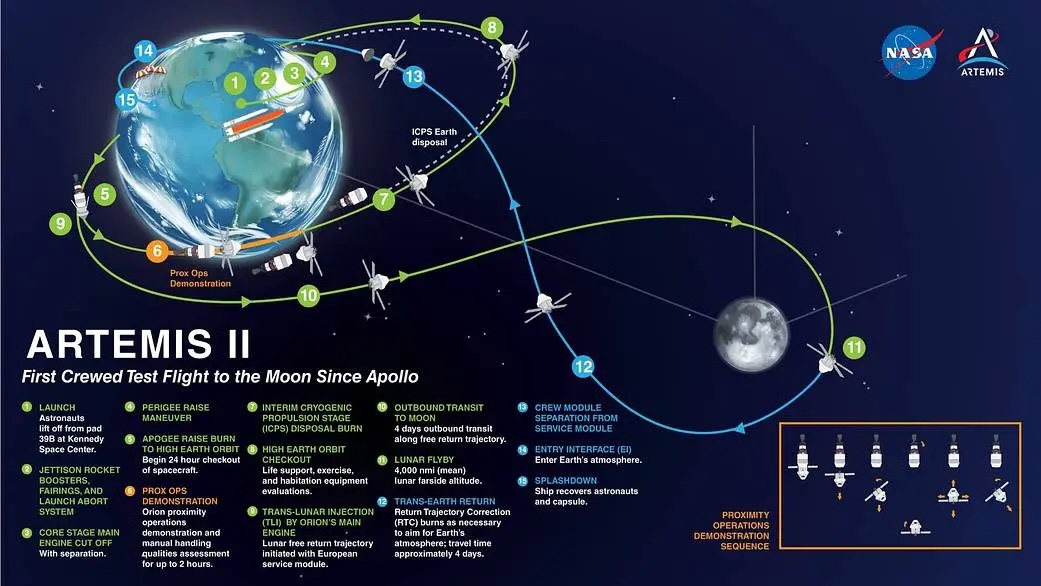

Artemis II - First crewed lunar flyby since Apollo 17, planned 2026
Artemis II Mission

Artemis III - Crewed low-Earth orbit test flight, planned 2027

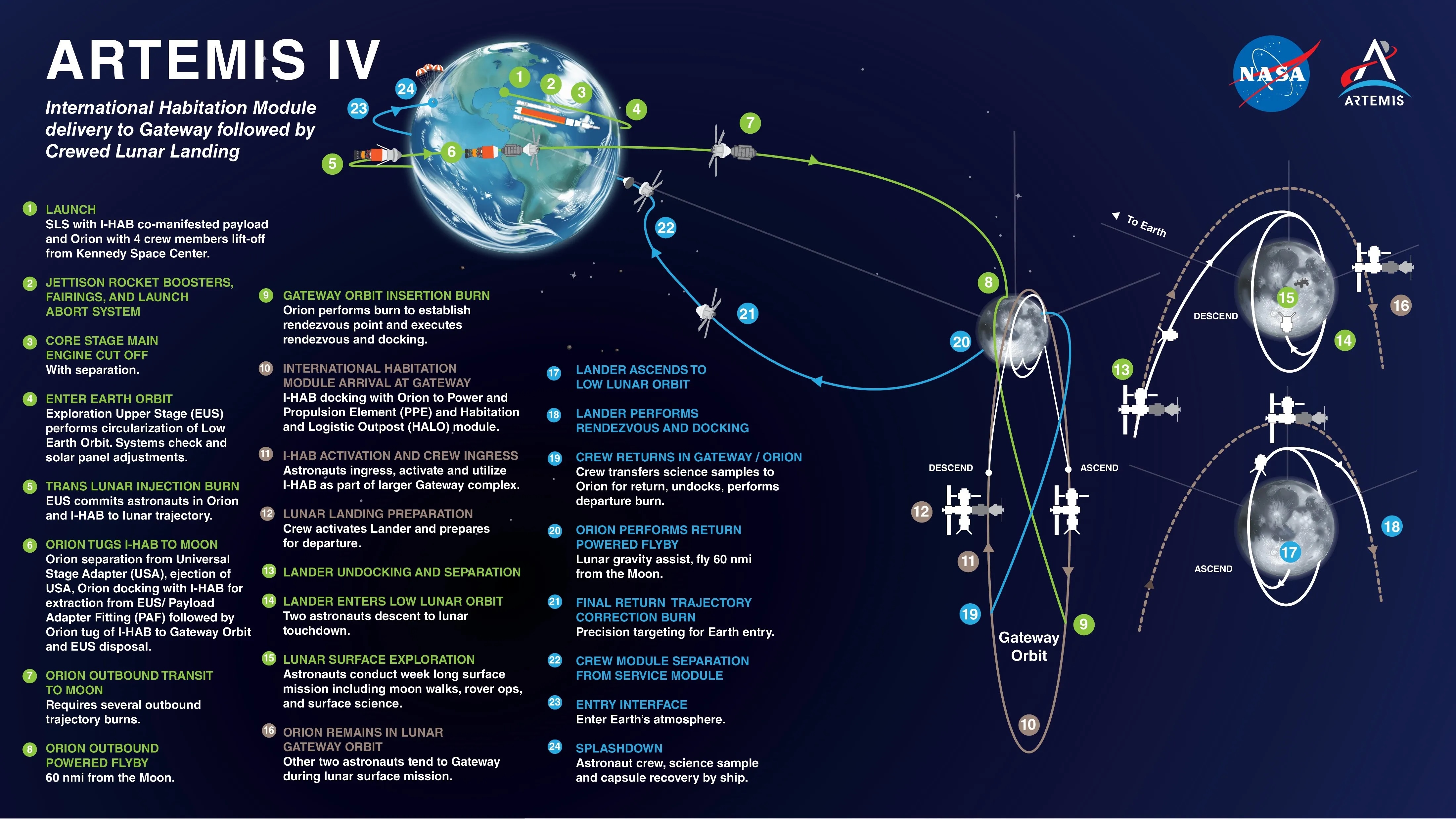

Artemis IV - First crewed lunar landing mission, planned 2028 Artemis Lunar Landing Mission

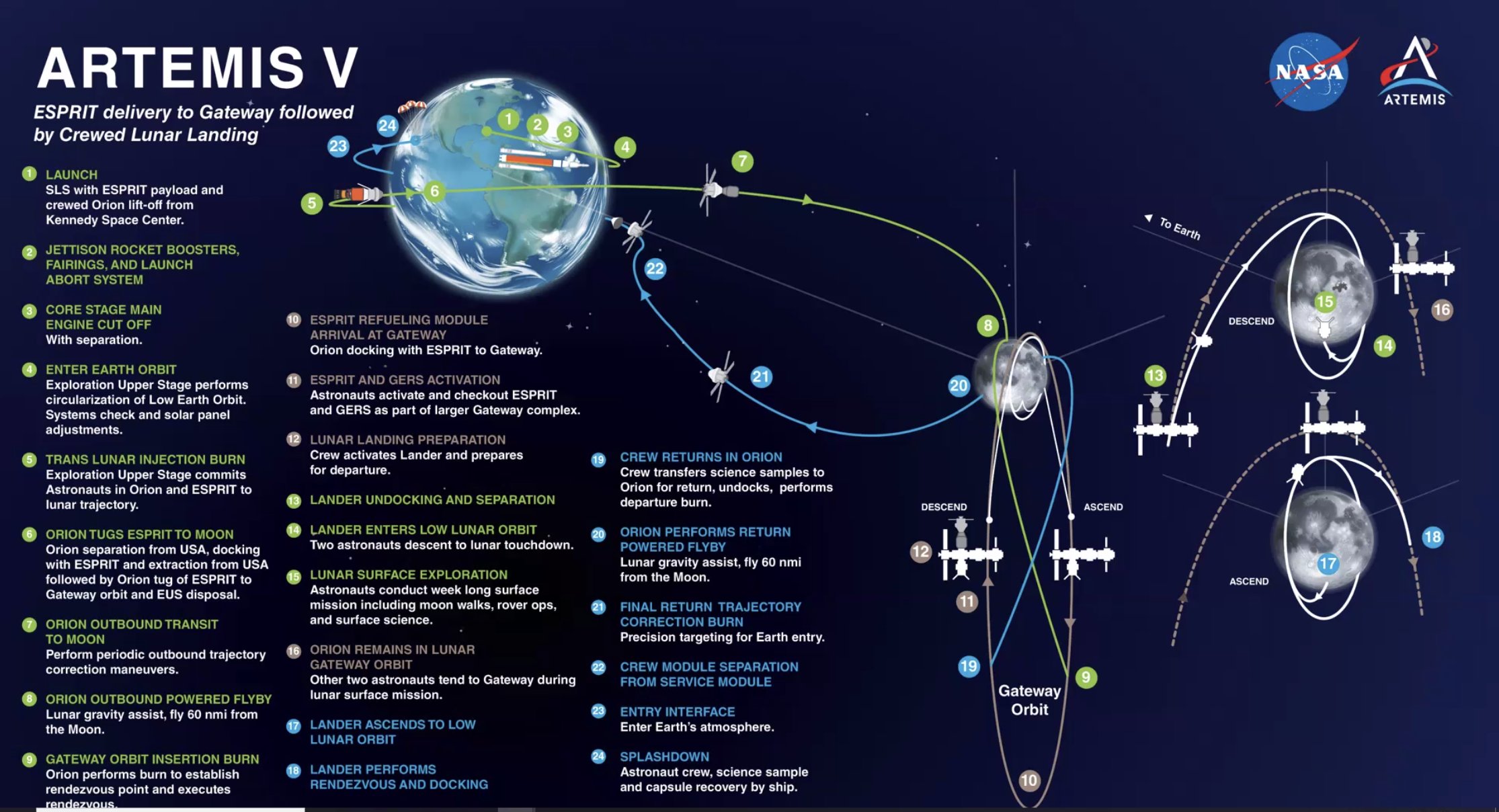

Artemis V - Expanding Artemis Base Camp and sustained lunar presence, planned 2029

Artemis VI–XXX - As of the Artemis IGNITE conference, the program anticipates 28+ lunar landings. Missions VI through XXX are placeholder entries in the CodeSystem for simulation, planning, and forecasting as mission profiles are defined. Gateway Deployment Mission - Artemis IV (outdated, pre-IGNITE reference) Gateway Deployment Mission - Artemis V (outdated, pre-IGNITE reference)

Core Concepts

Artemis missions introduce unique data modeling requirements distinct from ISS operations:

  • Mission Context: Unlike ISS (continuous habitation with regular crew rotation), Artemis missions are discrete expeditions with defined phases: launch, translunar injection, lunar orbit, descent, surface operations, ascent, trans-Earth injection, and re-entry. All health and environmental data must be tagged with mission ID and phase.

  • Deep Space Environment: Beyond Earth's magnetosphere, crews face galactic cosmic rays and solar particle events at doses 2-3 orders of magnitude higher than LEO. Continuous dosimetry, risk assessment, and shielding strategies are mission-critical.

  • Lunar Surface Operations: 1/6th gravity (not microgravity), extreme temperature variations (-173°C in shadow to +127°C in sunlight), lunar dust exposure, and EVA operations in South Pole terrain with permanent shadows and high illumination ridges.

  • Distributed Infrastructure: Gateway (lunar orbit station), Human Landing System (Starship-HLS), Orion crew vehicle, lunar surface habitats, and Lunar Terrain Vehicleeach with distinct life support, telemetry, and medical capabilities.

  • Communication Latency: Minimal for lunar missions (~1.3 second one-way light time), but this architecture must scale to Mars missions with 3-20 minute delaysrequiring asynchronous data exchange and autonomous medical decision support.

Data Architecture

Artemis health data spans multiple interconnected dimensions:

  • Mission Timeline: Each Artemis mission follows a sequence of discrete phases—launch, translunar cruise (approximately 4 days), lunar orbit insertion, Gateway docking, HLS transfer, lunar descent, surface EVAs, ascent, and trans-Earth return. Every phase carries distinct medical protocols and risk profiles, so all health observations must be tagged with both mission identity and current phase to support meaningful analysis.

  • Radiation Dosimetry: Beyond the magnetosphere, crews face continuous galactic cosmic ray exposure and the threat of unpredictable solar particle events. The data architecture captures real-time dose rates from active personal dosimeters, cumulative GCR exposure, SPE alert triggers, tissue-specific dose estimates, and career dose limit tracking—all linked to shielding context and crew location at time of measurement.

  • Environmental Monitoring: Life support telemetry from habitats and suits forms a continuous stream of environmental data. This includes cabin pressure, O₂ and CO₂ partial pressures, temperature, humidity, and lunar dust particle counts inside habitats, as well as suit-level thermal regulation and consumables during EVAs.

  • Physiologic Data: Crew health monitoring generates a broad spectrum of physiologic observations—continuous vital signs (heart rate, blood pressure, SpO₂, temperature), daily sleep quality metrics, periodic bone density and cardiovascular assessments, cognitive performance test results, and structured behavioral health surveys. Together these form the longitudinal health record that flight surgeons use to assess crew fitness in real time.

  • Operational Events: Mission operations produce their own data stream that must be correlated with health observations. EVA schedules, habitat transfers between vehicles, emergency procedure activations, medical interventions, and equipment malfunctions all represent events that can directly affect crew health and must be captured as structured FHIR resources.

  • Location Context: Artemis missions operate across multiple distinct environments—Gateway modules in lunar orbit, the HLS interior during transit and surface stays, and specific lunar surface regions with selenographic coordinates. Tagging observations with precise location context enables researchers to correlate health effects with environmental conditions at each site.

All measurements link to MissionContext extensions (consistent with other IG modules) and ArtemisMissions CodeSystem entries (Artemis I through XXX) to enable mission-specific filtering and cross-mission analysis.

Standardized Terminologies

New code systems and value sets for Artemis:

  • ArtemisMissionCS: Mission codes (ARTEMIS-I through ARTEMIS-XXX) with properties for target destination, launch date, status
  • ArtemisMissionVS: ValueSet for all Artemis program missions I-XXX
  • ArtemisLandingRegionCS: 13 candidate Artemis III south pole landing regions (Faustini Rim A, Peak Near Shackleton, Malapert Massif, Nobile Rim, Haworth, etc.) with approximate coordinates
  • ArtemisLandingRegionVS: ValueSet binding for location profiles
  • ArtemisCertifiedDevicesCS: Flight-qualified hardware (Orion, SLS, xEMU EVA suit, Starship-HLS, LTV rover, Gateway-HALO, BaseCampHab)
  • ArtemisCertifiedDevicesVS: ValueSet for certified Artemis devices
  • ArtemisPrototypeDevicesCS: Developmental/test hardware (xEMU Demo Unit, Pressurized Rover Prototype, Habitat Test Module, NextGen PLSS)
  • ArtemisPrototypeDevicesVS: ValueSet for prototype Artemis devices
  • ArtemisDevicesCS: Unified device inventory (44 entries) covering crewed vehicles, EVA systems, landers, Gateway modules, LunaNet communications and navigation, surface mobility, habitats, logistics, ISRU, and power systems
  • ArtemisAllDevicesVS: ValueSet combining both certified and prototype devices

Integration with existing terminologies:

  • SNOMED CT: Clinical conditions (radiation sickness, space adaptation syndrome), exposures ("Exposure to ionizing radiation from cosmic sources"), proceduresnoting gaps like "Extravehicular activity (procedure)" or "Lunar dust exposure"
  • LOINC: Radiation measurements (77638-4 "Irradiation dose rate"), vital signs, atmospheric composition, environmental sensors
  • NASA HMTA: Health and Medical Technical Authority standards for exposure limits, medical event categories, crew health requirements

Physiologic and Environmental Considerations

The challenges of Artemis missions are not incremental improvements over ISS operationsthey are categorically different. Picture the Artemis III crew: they have just landed at Malapert Massif, a rugged highland near the lunar south pole. Outside, the temperature in shadow is -230°C. The Sun hangs low on the horizon, never rising more than a few degreesproviding near-continuous daylight for solar power but casting deep, permanent shadows where no sunlight has touched the surface in billions of years. The regolith is electrostatically charged, clinging to every surface. There is no atmosphere, no magnetosphere, no protection from cosmic radiation. The crew will spend 6.5 days here, conducting two EVAs, collecting samples, and testing technologies for future Mars missions. Every breath they take, every step they make, every moment of sleep is monitored because there is no margin for error.

Beyond the Magnetosphere

  • Galactic Cosmic Rays (GCR): Continuous background radiation from distant supernovaehigh-energy protons and heavy ions that penetrate spacecraft walls and human tissue, damaging DNA and increasing cancer risk
  • Solar Particle Events (SPE): Unpredictable bursts of radiation from solar flarescan deliver lethal doses in hours without adequate shielding (storm shelters in Gateway and HLS)
  • Dose Limits: NASA career limits (varies by age/sex, typically 150-400 mSv for LEO missions) are exceeded far more quickly in deep spaceArtemis III crew may accumulate 20-30 mSv in 30 days
  • ALARA Principle: "As Low As Reasonably Achievable"continuous dosimetry, shielding optimization, mission timeline adjustments to minimize exposure

Lunar Gravity and Musculoskeletal Effects

  • 1/6th Gravity: Not microgravity (like ISS) but also not Earthsufficient to maintain some load-bearing but insufficient to prevent bone loss and muscle atrophy over weeks to months
  • EVA Countermeasures: Walking, hopping, sample collection in EVA suits provides some resistance exercise, but not equivalent to ARED/T2 protocols
  • Post-Mission Reconditioning: Astronauts returning from lunar surface may have different reconditioning needs than ISS crew (partial gravity vs microgravity adaptation)

Lunar Dust Hazards

  • Regolith Characteristics: Jagged, electrostatically charged, abrasive particlescling to suits, equipment, habitat surfaces
  • Inhalation Risk: Dust tracked into habitats can cause respiratory irritation, inflammation, potential long-term lung damage (analogous to silicosis)
  • Equipment Degradation: Dust fouls seals, jams mechanisms, scratches visorsrequiring meticulous decontamination procedures

EVA Challenges

  • Artemis III Plans: Minimum two EVAs, ~6.5 days surface time, south pole terrain (slopes, boulders, shadows)
  • xEMU Suit: Next-generation EVA suit with improved mobility, longer life support duration (8 hours), lower operating pressure (8 psi vs 4.3 psi in Apollo)reduced prebreathe time
  • Metabolic Demands: EVA work rates 200-400 kcal/hrhigher than treadmill exercisewith limited cooling, hydration, and waste management
  • Thermal Extremes: Suit must protect against -230°C in shadow and +120°C in sunlight simultaneously
  • Communication: Line-of-sight only (no atmosphere for radio bounce)Gateway relay or direct Earth link required

Circadian Disruption

  • Lunar Day: 29.5 Earth days (14.75 days sunlight, 14.75 days darkness)but south pole sites chosen for near-continuous sunlight during surface missions
  • Artificial Light-Dark Cycles: Habitat lighting must simulate Earth day-night to maintain circadian rhythmsbut external lighting cues absent or abnormal
  • Sleep Quality: Confined spaces, operational stress, radiation concerns, suit discomfortall degrade sleep despite adequate opportunity

Habitat Confinement

  • Gateway HALO Module: ~8.5 meters long, 3 meters diameterapproximately the size of a large RV for 4 crew members
  • Starship-HLS Interior: More spacious (9-meter diameter, 18-meter pressurized height) but still confined during multi-day transits
  • Surface Hab (Future): Artemis Base Camp will provide larger living quarters, but early missions operate out of HLS
  • Psychological Factors: Isolation, interpersonal friction, monotony, communication delays (minimal for Moon, but training for Mars)

Monitoring Strategy

Artemis missions require integrated, real-time health and environmental monitoring with automated alerting, ground-loop medical consultation, and autonomous crew decision support. Unlike ISS (continuous communication, predictable environment, regular resupply), Artemis crews must be more self-sufficient.

Pre-Flight Baseline

  • Comprehensive Medical Evaluation: Bone density (DEXA), cardiovascular fitness (VO2max), cognitive baseline (PVT, memory tests), psychiatric screening, radiation sensitivity biomarkers
  • Countermeasure Training: EVA conditioning, partial gravity simulators, suit familiarization, emergency medical procedures
  • Mission-Specific Risk Assessment: Individualized radiation limits, nutrition plans, exercise protocols, psychological support strategies

In-Flight Monitoring

  • Continuous Vital Signs: Heart rate, blood pressure, SpO2, temperaturewearable sensors integrated with suit telemetry during EVAs
  • Daily Health Logs: Self-reported sleep quality, appetite, mood, pain, fatiguestructured questionnaires (PHQ-9, GAD-7, NASA-TLX workload)
  • Radiation Dosimetry: Active Personal Dosimeters (APDs) with real-time dose rate display, tissue equivalent proportional counters (TEPC), area monitors in habitats
  • Environmental Sensors: Cabin pressure, O₂/CO₂ levels, temperature, humidity, dust particle counts, microbial contamination
  • Cognitive Performance: Weekly reaction time tests (PVT), memory tasks, spatial orientation assessmentsdetect early CNS effects from radiation or stress

Post-EVA Assessments

  • Immediate: Suit telemetry review (metabolic rate, heart rate, fluid consumption, thermal regulation), post-EVA physical exam, dehydration assessment
  • 24-Hour: Sleep quality, muscle soreness, any injuries or skin irritation from suit contact, dust exposure symptoms
  • Cumulative: EVA workload integration with overall energy expenditure, correlation with sleep deficits, stress burden

Risk Threshold Alerts

  • Radiation: Dose rate >0.5 mGy/hr (SPE warning), cumulative dose approaching career limits, tissue-specific thresholds
  • Cardiovascular: Resting HR >100 bpm, BP >140/90, arrhythmias, orthostatic intolerance
  • Sleep: <5 hours for 3 consecutive nights, sleep efficiency <70%, excessive daytime sleepiness
  • Behavioral Health: PHQ-9 e10 (moderate depression), GAD-7 e10 (moderate anxiety), interpersonal conflict reports, suicidal ideation (immediate psych consult)
  • Environmental: Cabin pressure drop, O₂ <19.5%, CO₂ >0.5%, temperature extremes, dust contamination above threshold

Data Model Architecture

The Artemis data model maps the full scope of deep-space mission operations onto FHIR R4 resources. Each resource type captures a distinct facet of crew health, environmental conditions, or operational context, and all are linked through MissionContext extensions and ArtemisMissions CodeSystem entries so that any observation can be traced back to a specific mission, phase, and location.

Core FHIR Resources

  • Observation — Radiation dose measurements, environmental sensors, vital signs, cognitive assessments, biomarkers
  • Procedure — EVAProcedure (moonwalks), habitat transfers, emergency medical interventions, suit maintenance
  • Condition — Diagnosed conditions (space adaptation syndrome, radiation dermatitis, decompression injury)
  • Device — Orion, Starship-HLS, xEMU suits, Gateway modules, LTV rover, dosimeters, medical equipment
  • Location — Gateway modules, HLS compartments, lunar landing sites (with selenographic coordinates), surface habitats
  • Encounter — Mission phases (launch, translunar, lunar orbit, surface operations, return)
  • PlanDefinition — Mission timelines, EVA schedules, medical protocols, contingency procedures
  • RiskAssessment — Radiation risk models, bone loss projections, behavioral health vulnerability scores

Extensions

  • missionContext (reused from other modules) — Links all resources to specific Artemis mission and phase
  • lunarCoordinates — Selenographic latitude/longitude for Location resources
  • radiationShielding — Shielding mass/composition for habitat or vehicle Device resources
  • evaNumber — Sequential EVA identifier within a mission (e.g., "EVA-1", "EVA-2")

Profiles

  • EVAProcedure: Procedure profile for extravehicular activities with required fields for duration, location, participants, suit device, metabolic data
  • HabitatLocation: Location profile for lunar habitats, Gateway modules, landing sitesincludes selenographic coordinates, region code, environmental type (orbital/surface)
  • ArtemisRadiationExposure: Observation profile extending base radiation tracking with deep space context (GCR vs SPE, shielding conditions)
  • MissionPlan: PlanDefinition profile for Artemis mission timelines with phases, events, constraints, medical protocols

Use Cases

1. Artemis II Lunar Flyby Health Monitoring

Comprehensive health surveillance during 10-day crewed lunar flybycontinuous vital signs, daily health logs, radiation dosimetry, behavioral health assessments. First human exposure to deep space radiation since Apollo.

2. Artemis III EVA Operations

Two surface EVAs at Malapert Massifpre-EVA readiness assessments, continuous suit telemetry, post-EVA recovery monitoring, dust exposure tracking, cumulative workload integration.

3. Radiation Exposure Management

Real-time dosimetry during translunar cruise, SPE alert response (crew relocates to storm shelter in Gateway), cumulative dose tracking against career limits, post-mission risk assessment for stochastic effects.

4. Lunar South Pole Environmental Challenges

Surface operations in extreme thermal, radiation, and dust conditionshabitat air quality monitoring, suit decontamination effectiveness, crew sleep quality in partial gravity, circadian entrainment strategies.

5. Cross-Mission Longitudinal Tracking

Individual astronauts participating in multiple Artemis missionscareer radiation dose accumulation, bone density trends, cardiovascular adaptation, psychological resilience factorsinforming crew selection for Mars missions.

6. Gateway Long-Duration Habitation

Multi-week stays in Gateway modulesenvironmental monitoring (air quality, temperature, noise), exercise countermeasures (adapted T2/ARED protocols), nutrition tracking (limited resupply), interpersonal dynamics assessment.

Integration with Existing Systems

Crew Health and Medical Systems

  • Artemis data feeds into NASA's Lifetime Surveillance of Astronaut Health (LSAH) database
  • Integration with terrestrial EHR systems for pre-flight and post-flight clinical care
  • Real-time health dashboards for flight surgeons at Mission Control

Mission Operations

  • Environmental alerts trigger operational responses (crew relocation, timeline adjustments, emergency procedures)
  • EVA schedules synchronized with medical readiness, radiation conditions, crew fatigue levels
  • Gateway resource management (O₂, water, food, medical supplies) integrated with health monitoring

Radiation Protection

  • Active dosimetry data informs trajectory optimization, shielding configurations, activity scheduling
  • SPE forecasting integrated with crew shelter protocols
  • Career dose tracking enforces exposure limits, disqualifies crew from future missions if thresholds exceeded

Research and Development

  • Artemis health data validates models for Mars mission planning (bone loss rates, radiation effects, psychological stressors)
  • Countermeasure effectiveness studies (exercise protocols, pharmacologic interventions, behavioral health strategies)
  • Technology demonstrations (wearable sensors, autonomous diagnostics, telemedicine platforms)

Regulatory and Standards Alignment

  • NASA-STD-3001: NASA Human Spaceflight Standardscrew health, habitat design, EVA systems, life support
  • NASA HMTA: Health and Medical Technical Authoritymedical certification, exposure limits, clinical protocols
  • SNOMED CT: Clinical terminology for conditions, procedures, findingsnoting gaps for space-specific concepts
  • LOINC: Laboratory and clinical measurementsradiation, environmental sensors, physiological parameters
  • HL7 FHIR R4: Core standard for all resource profiles, ensuring interoperability with terrestrial healthcare systems

Future Directions

Mars Mission Preparation

  • Artemis serves as proving ground for Mars medical systemslonger durations, greater communication delays, more austere environments
  • Longitudinal crew health trends inform crew selection, mission design, countermeasure strategies for 2-3 year Mars expeditions

Autonomous Medical Systems

  • Machine learning models for early detection of radiation sickness, bone loss, behavioral health decline
  • Decision support systems for crew medical officers (limited physician training)diagnosis, treatment protocols, emergency procedures
  • Telemedicine platforms robust to communication latency, bandwidth constraints

Sustainable Lunar Presence

  • Artemis Base Camp (2030s) requires permanent medical infrastructurediagnostic equipment, surgical capability, pharmaceutical inventory
  • ISRU (In-Situ Resource Utilization) for medical supplieswater purification, oxygen generation, 3D-printed pharmaceuticals

International Collaboration

  • Gateway partners (NASA, ESA, JAXA, CSA) require interoperable health data standards
  • Commercial lunar landers (Blue Moon, Starship-HLS) must integrate with NASA medical systems
  • Global space medicine research networkdata sharing, protocol harmonization, joint countermeasure development

The Artemis program is not just about returning to the Moonit's about learning to live and work in deep space. Every data point captured, every health metric trended, every environmental threshold monitored brings us closer to understanding whether humans can survive the journey to Mars. The FHIR-based architectures defined in this Implementation Guide ensure that the lessons learned from Artemiswritten in the physiology and psychology of the crews who venture beyond Earth's protective embracewill be preserved, analyzed, and applied to the next giant leap for humanity.
